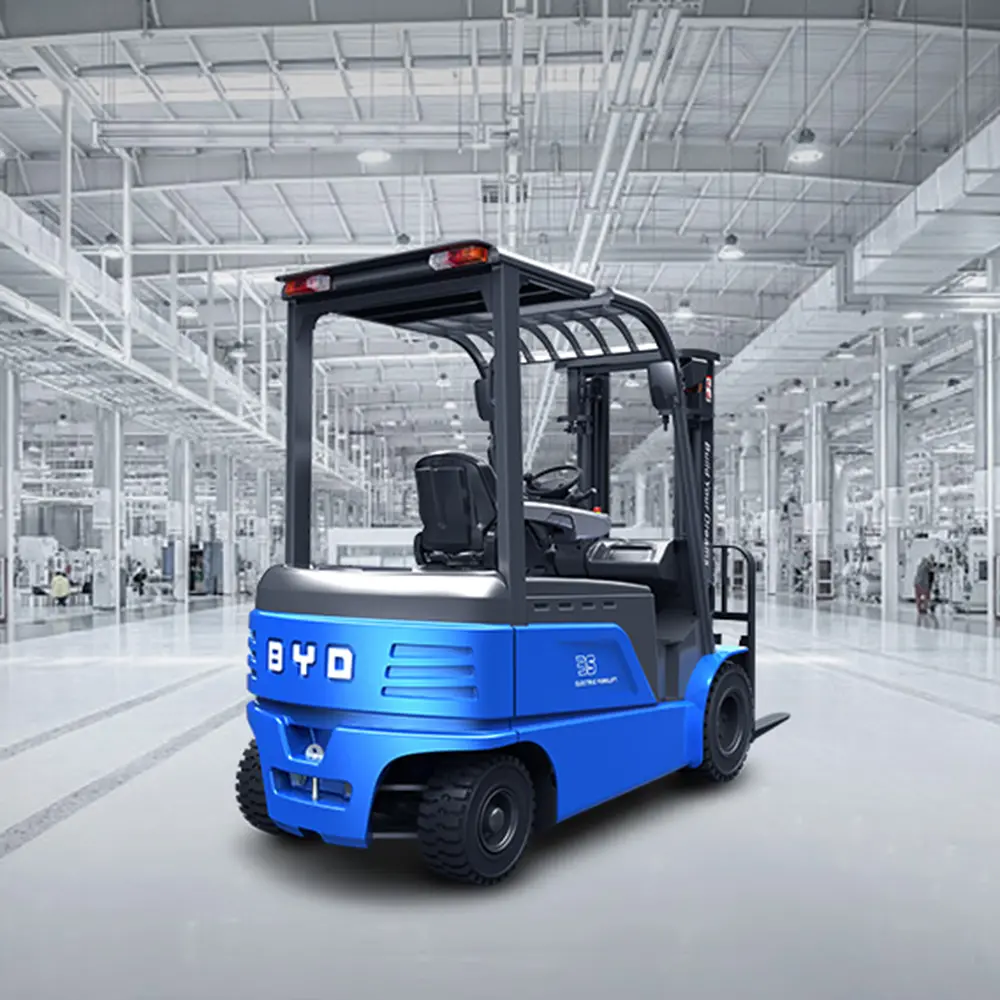

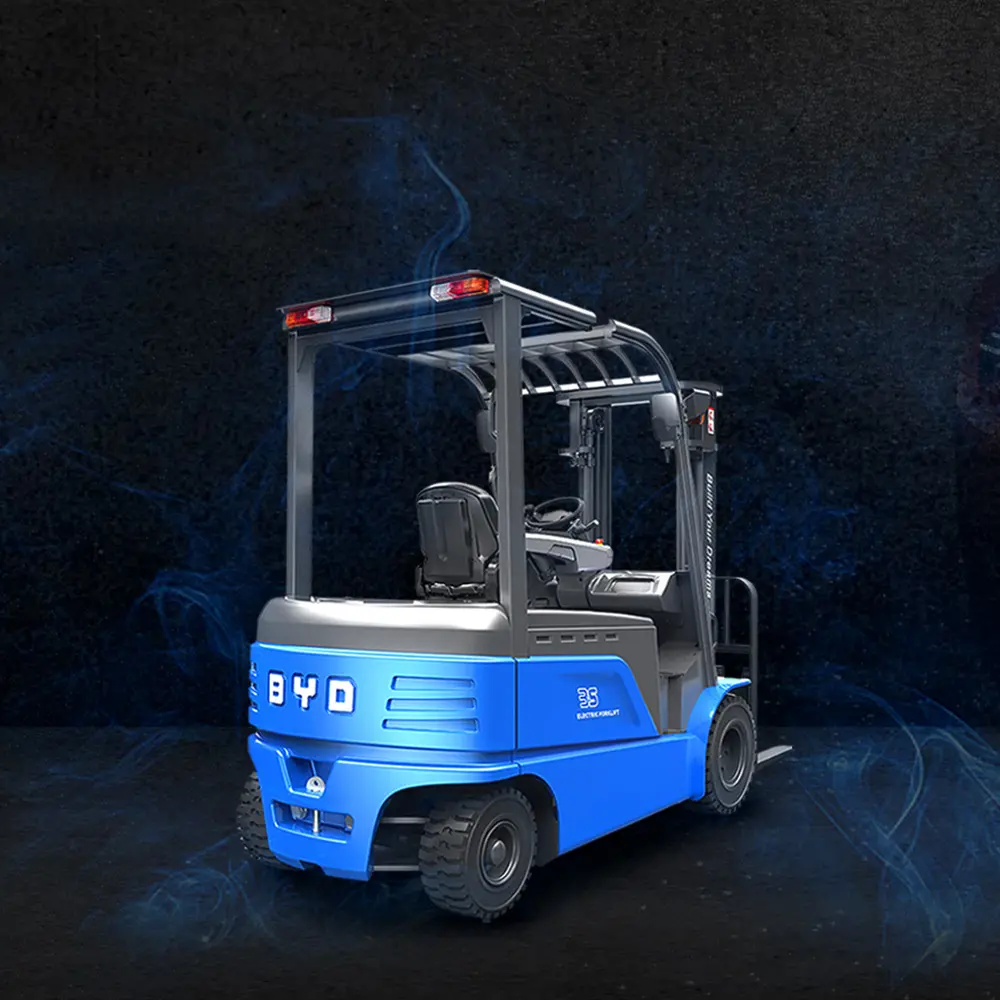

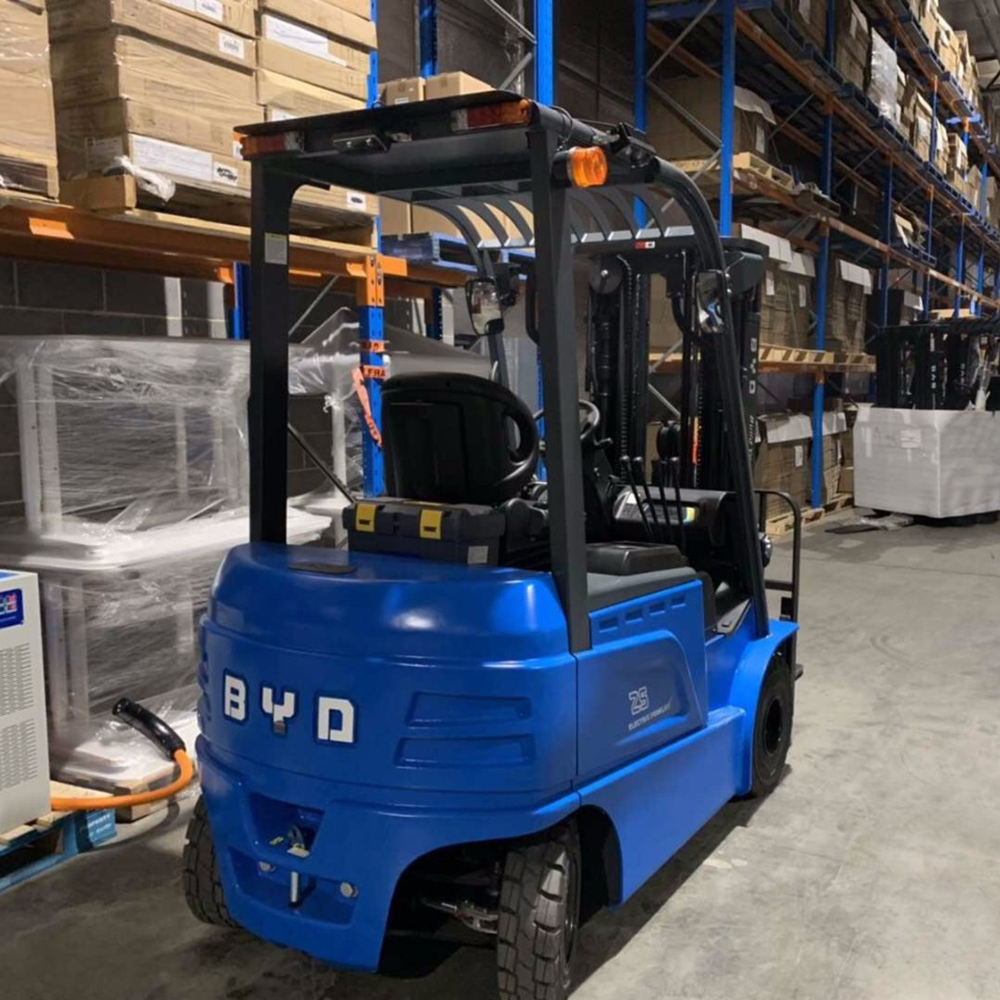

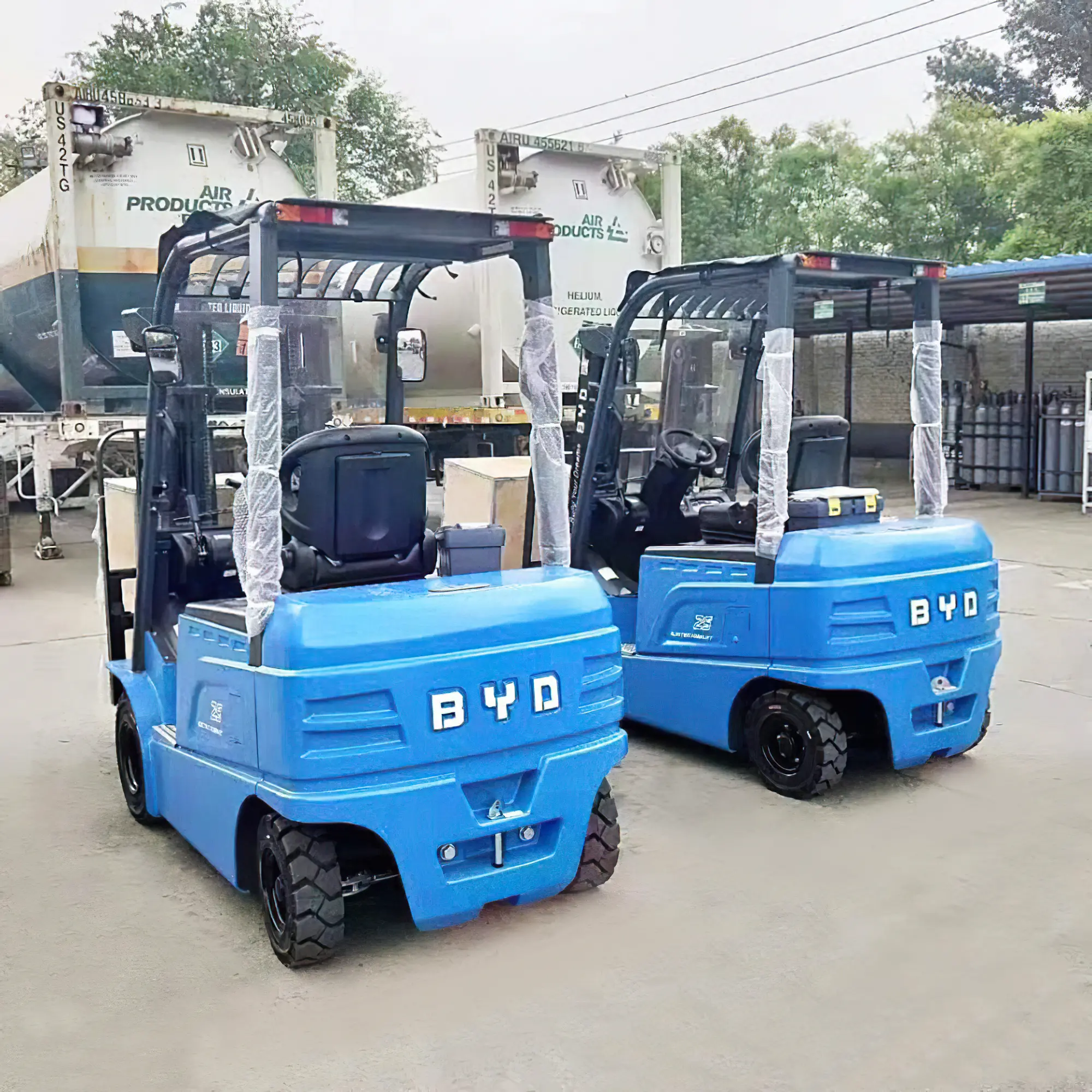

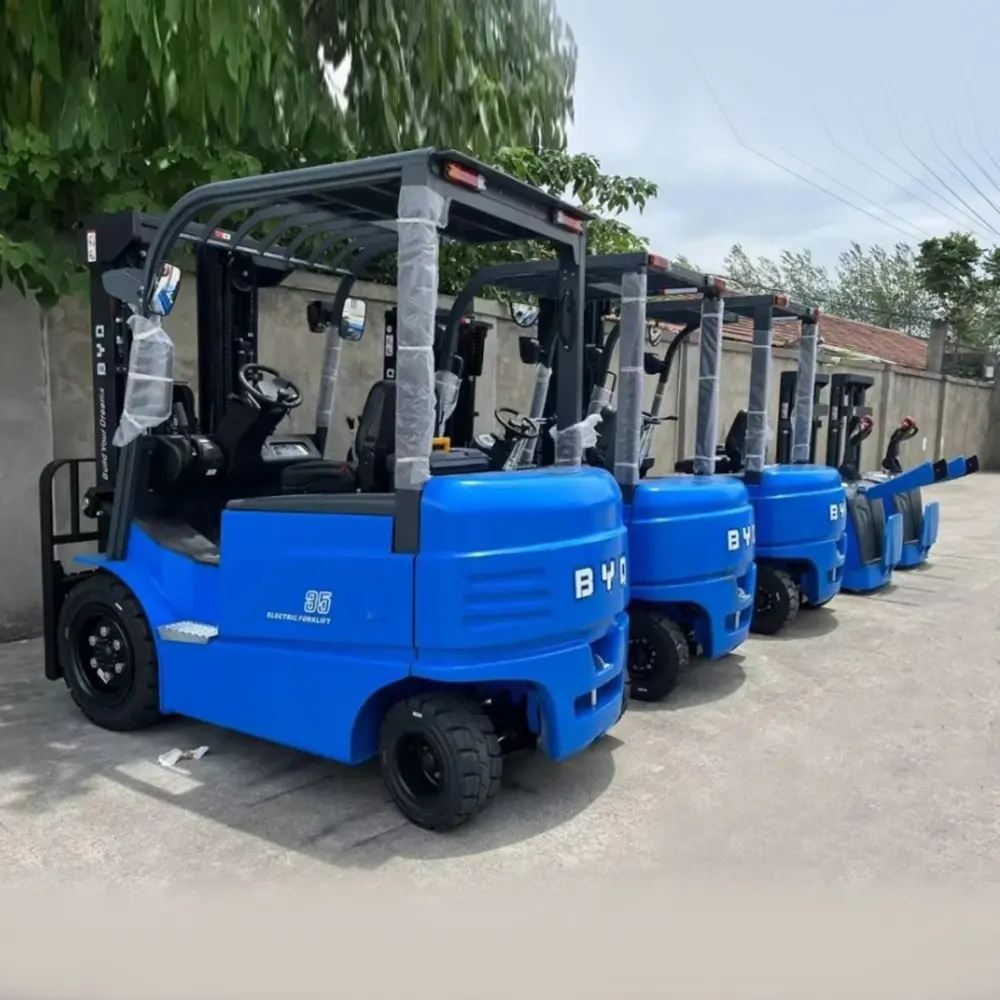

New Energy Electric Lithium Battery AC Electric Fork Truck 3.5ton Load Capacity Counterbalanced 4 Wheel Electric Forklift

Product Name	3.5Ton Electric Forklift
L×W×H (mm)	367013602215mm
Drive	Electric
Lift height	3000~5000mm
Load Capacity	1 – 5Ton
Load Center	500mm
Total weight (including battery)	5000-5600
Driver noise(dB(A))	≤75
Traction connection method	PIN

BYD

Share to

Description

Product Description

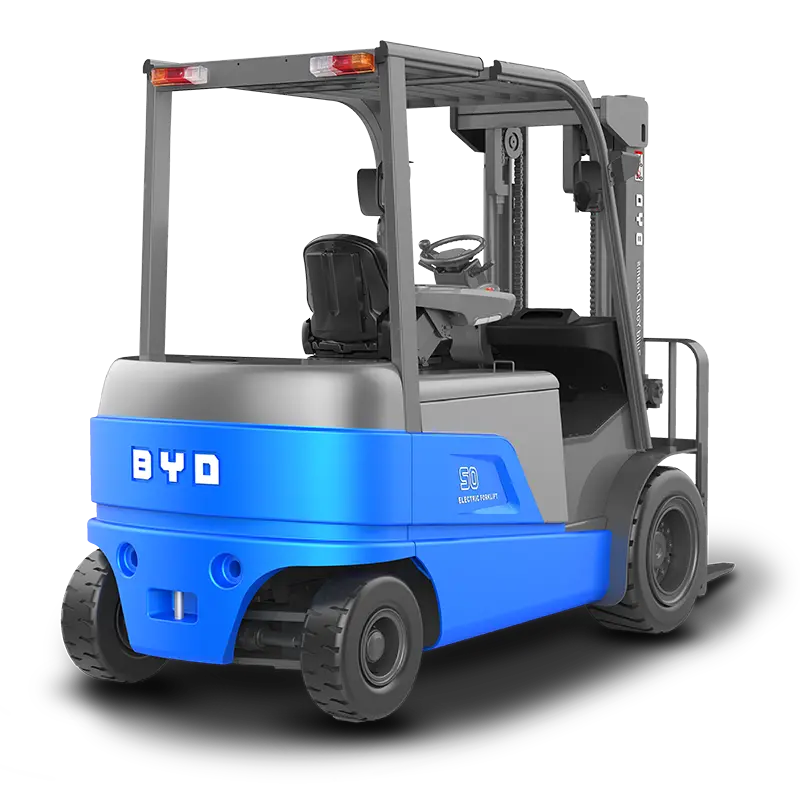

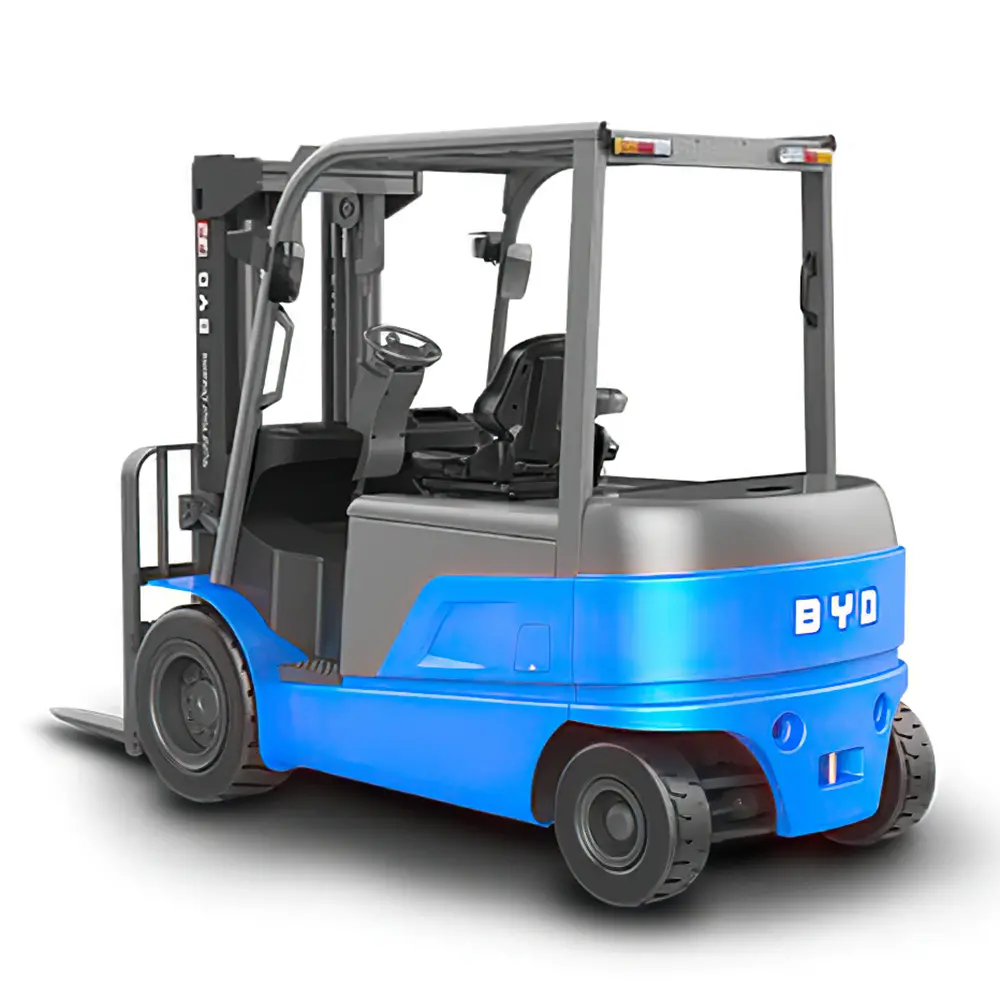

Product Name	BYD Electric Forklift CPD30	BYD Electric Forklift CPD35
Drive	Electric	Electric
Load Capacity(kg)	3000	3500
Load Center(mm)	500	500
Total weight (including battery)kg)	5000	5600
Wheel category	SE	SE
Minimum mast height(mm)	2105	2105
Free lifting height(mm)	130	130
Lifting height(mm)	3000	3000
Height of overhead guardrail(mm)	2215	2215
full length(mm)	3670	3670
Total length (excluding forks)	2600	2600
Overall width(mm)	1360	1360
Fork size(mm)	45/125/1070	50/125/1070
Minimum height from the ground at the mast(mm)	110	110
Minimum ground clearance of frame(mm)	130	130

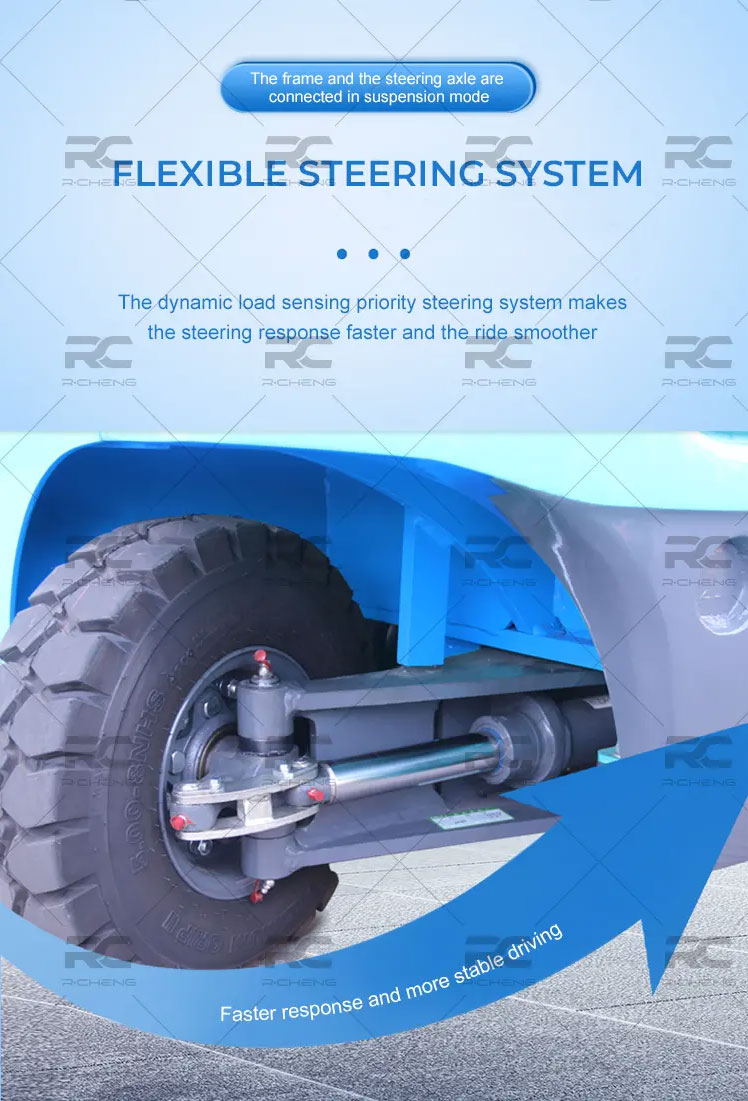

Minimum turning radius(mm)	2270	2270
Travel speed, loaded/unloaded(Km/h)	15/16	15/16
Lifting speed, loaded/unloaded(mm/s)	380/450	380/450
Lowering speed, load/no load(mm/s)	550/450	550/450
Maximum climbing ability, S2=5min, load/no load(%)	15/20	15/20

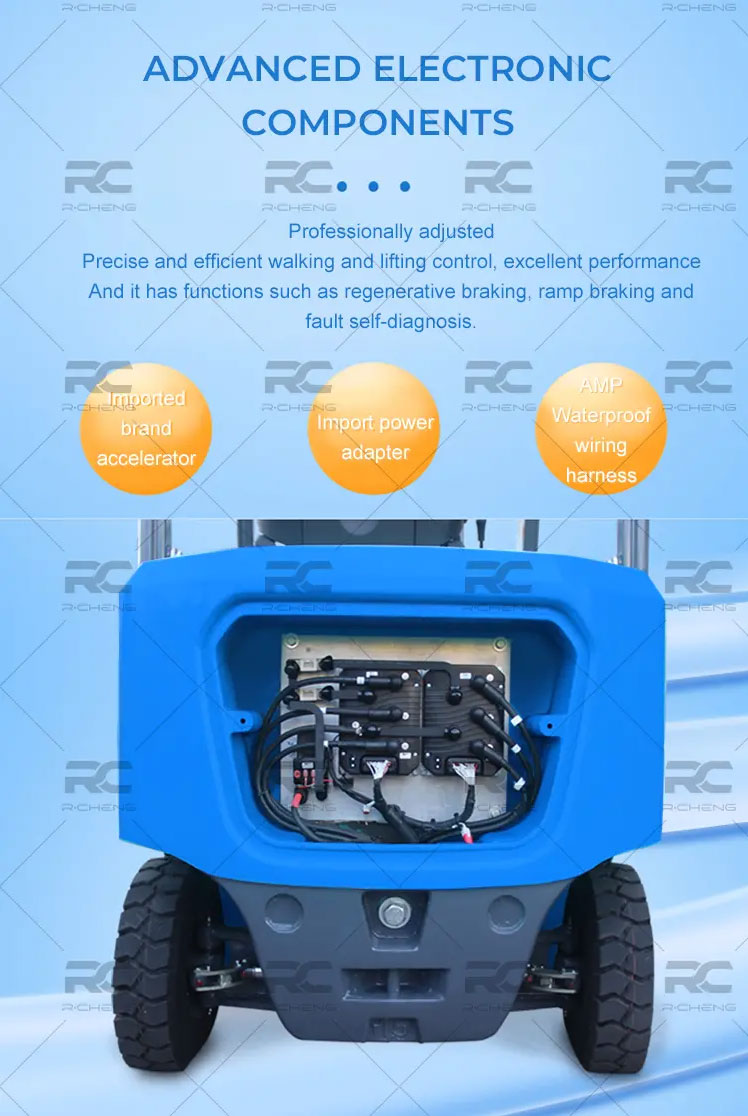

Electronic control type	AC	AC
Driver noise(dB(A))	≤75	≤75
Traction connection method	PIN	PIN
